Product Description:

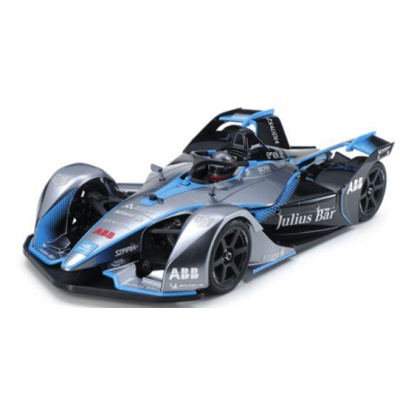

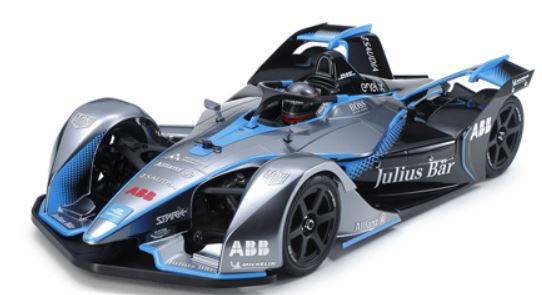

TAMIYA 2020 New Era Formula Electric Racing Scale Remote Control Modeling
Since 2014, the Formula E circuit has been held, mainly on world-renowned city street circuits (such as famous resorts), rather than on traditional closed tracks. This is a 1/10 electric remote control car kit. The real car is the second generation chassis developed for this competition and launched in 2018. The model faithfully replicates the low and individual look with a polycarbonate clear body. Includes realistic parts for cockpit protector "HALO", matching mirrors and front bumper, and large rear diffuser. Complete with the latest Champion Team stickers. Chassis shaft drive 4WD TC-01 with latest built-in suspension specification

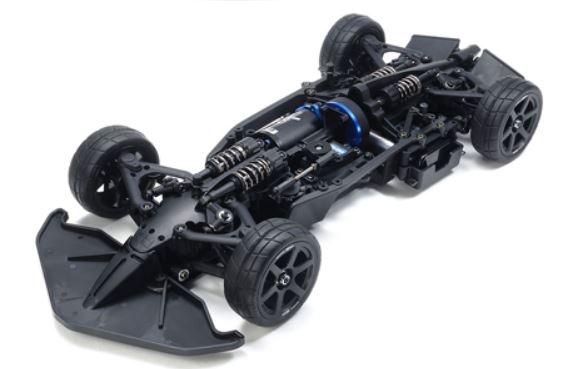

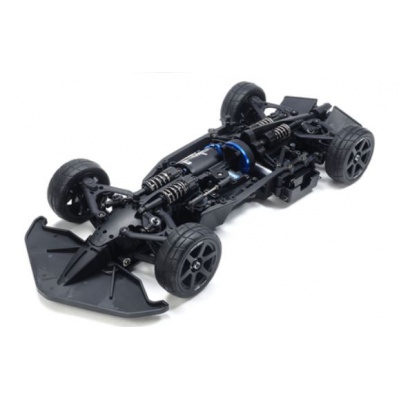

Chassis features:
* Has an extremely low lying height. The high-rigidity motor mount is installed in the center of the monocoque, and the transmission shaft transmits power forward and backward.
* Equipped with an oil-filled gear differential.
* 4-wheel independent double-wishbone suspension with long arm specification, horizontal hydraulic shock absorber operated vertically by push rod and rocker arm.
* By adjusting the number of shims, camber, caster and toe-in can be set.
* Suspension arms/posts use common parts front, rear, left and right to provide high maintainability.

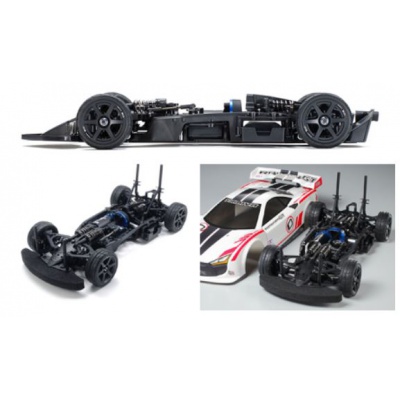

* Attached to the RV shell to fix the shell column, which can be matched with the standard 1/10 electric RV shell
[Basic Specifications]
●Total length 430mm, total width 188mm, total height 99mm
●Wheelbase: 257mm
●Tire width/diameter: front and rear 24/64mm
●Frame: one-piece monocoque
●Drive system: central longitudinal motor/shaft drive 4WD
●Differential: oil filled gear differential
●Gear ratio: kit standard motor gear 24T 6.56:1
產品描述:
TAMIYA 2020 新時代電動方程式賽車比例遙控模型化
自2014年以來，電動方程式巡迴賽事開始舉辦,主要在世界著名城市街道賽道（例如著名的度假區），而不是在傳統的封閉跑道舉行。這是一款1/10電動遙控汽車套件，實車是為該比賽而開發的第二代底盤，於2018年推出。模型以聚碳酸酯透明車殼像真地複制了低矮且個性化的外觀。包括用於駕駛艙保護裝置“ HALO”，配合後視鏡和前保險桿以及大型後擴散器的像真零件。搭配最新冠軍車隊貼紙。底盤採用最新內置懸架規格的軸驅動4WD TC-01
底盤特點:
* 具有極為低趴的高度。高剛性馬達座安裝在單體外殼的中央，並且傳動軸向前後傳遞動力。
* 配備了灌油齒輪差速器。
* 長臂規格的4輪獨立雙叉骨懸架，通過推桿和搖臂垂直操作水平油壓避震器。
* 通過調整墊片的數量，可以設置外傾角，後傾角和前束角。
* 懸架臂/立柱在前，後，左和右使用通用部件，以提供較高的可維護性。
* 附房車車殼固定車殼柱,可搭配標準1/10電動房車車殼
[基本規格]
●全長430mm，總寬度188mm，總高度99mm
●軸距:257mm
●輪胎寬度/直徑:前後24 / 64mm
●車架:一體成型的單體外殼
●驅動系統:中央縱置馬達/軸驅動4WD
●差速器:灌油齒輪差速器
●齒輪比:套件標準馬達齒24T 6.56：1
